  IPPE 3012 IPPE 3020

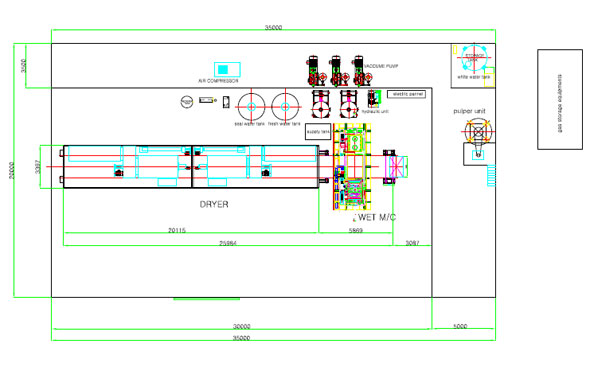

Installation
area
20m(W) X 40m(L) X 7m(H) 26m(W) X 40m(L) X 7m(H)
Supplied power 3 5W 380V 480KW 3 5W 380V 550KW
Burner capacity 875,000Kcal/h X 2set 875,000Kcal/h X 2set
Vacuum capacity 55Kw X 3Set 75Kw X 3Set
Equipment fabrication period 90days 100days
Equipment Installation period 40days 45days
Education period 30days 30days
Mobilized manpower 3~4persons 4persons

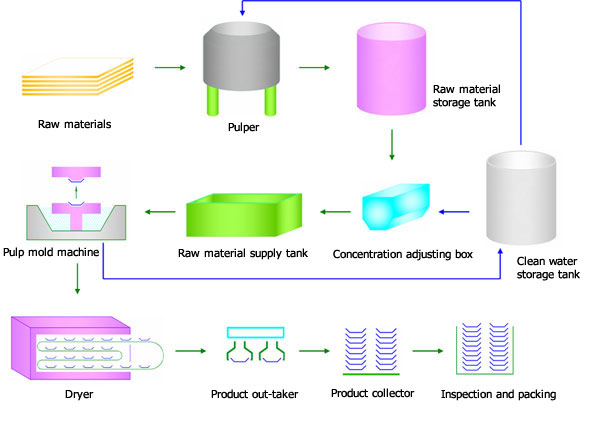

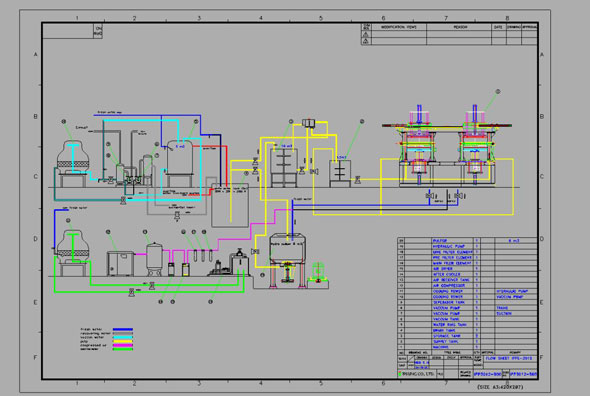

1. MOLDING PARTLIST
1. MOLD Base
- Size : 1500×1110 (30egg Tray →12Cavity)
- Moving: Vertical moving by hydraulic cylinder
2.Transfer block
- Moving : Vertical & Horizontal moving by hydraulic cylinder
3.Water sprayer
- Type : Pumping spray system
- Pump : 900W x 2 set

2. VACUUM PART
1. Type: Liquid ring pump
2. Vacuum : 680mmHg
3. Motor 55Kw

3. HYDRAULIC PARTS
1. Motor 22Kw
2. Pump Double Vanepump
3. Relief Valve, Solenoid Valve, Cooler
4. Tank

4. CONTROL PANEL PART
1. MCC Panel & PLC Panel
- Relevant motor control and burner PID control

1. Operation Desk Panel
- Touch screen: System setting and record custody setting

5. DRYER PARTS
The conveyor structure inside the dryer is “S” type, so it has a fuel saving effect as much as 20-25% compared with general dryers.

6. COMPRESSOR PARTS
1. Screw type air compressor
2. Motor
3. Air dryer
4. After cooler
5. Air receiver tank
6. Main , pre, line filter

7. TANK PARTS
Regulating Box & Storage Tank Vacuum Tank & Supply Tank

8. PULPER
1. P.S Rotor Type
2. Capacity : 5.5㎥
3. Pulping Consistency; Max : 3~4%
4. Motor : 37㎾,380V, 3Phase

9. PRODUCT TAKEOUT STACKER
